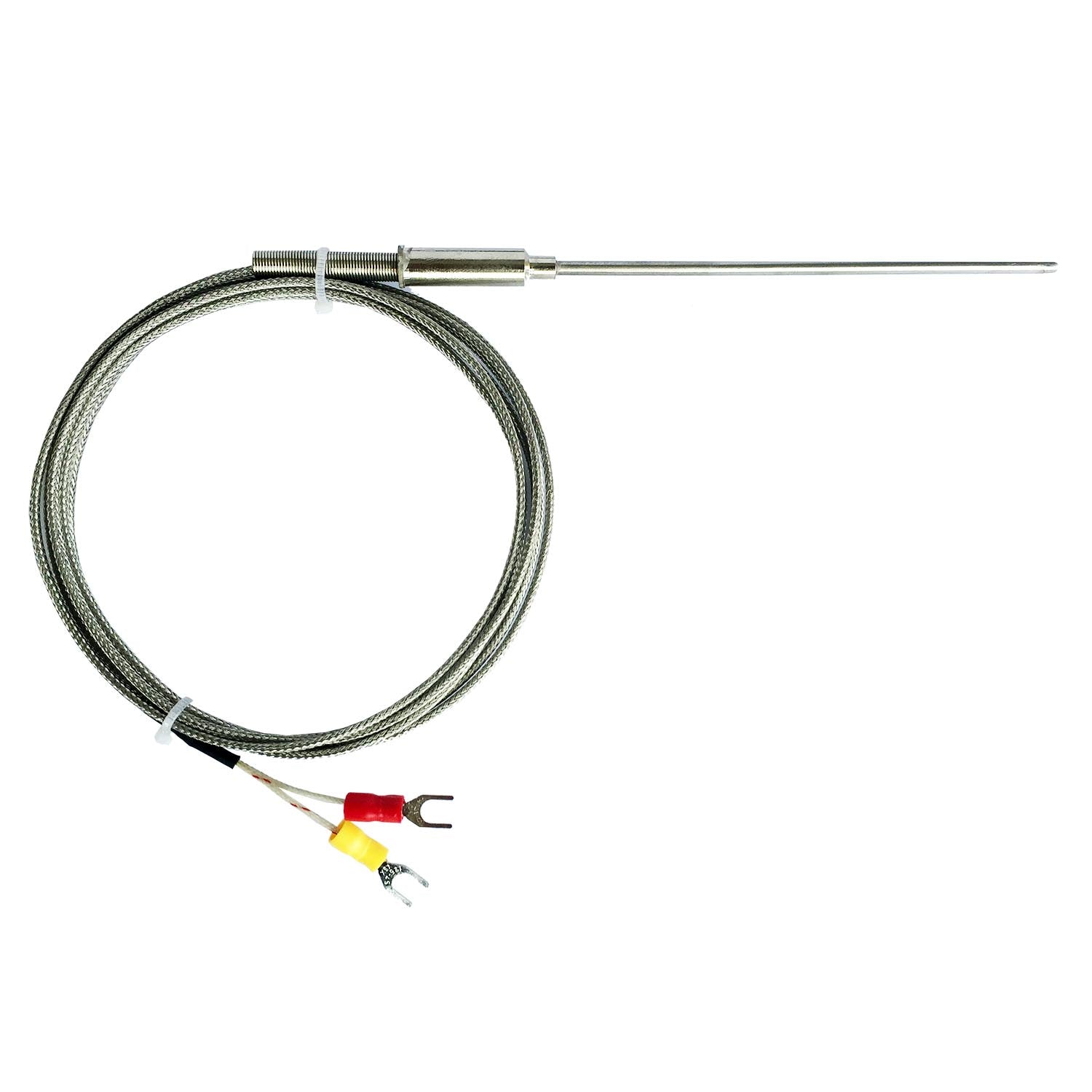

This WRNK-191 K type transition style high temperature thermocouple probe can be used for glass kilns and heat treatment ovens. The maximum working temperature is 900 °C (1650 °F). It can handle 650 °C (1200 °F) continuously. The maximum temperature on the transition area is 400 °C (750 °F).
Specifications
| Probe Length | 4" (100mm) |
| Diameter | 3 mm |
| Tubing Material | 304 Stainless Steel |
| Transition section dimension | 0.3” in diameter and 1” long |
| Connectors Color Code | Yellow (+), Red (-) |
| Cable | 6 ft (2 meters) long |
| Cable insulation | Fiberglass with stainless steel overbraided (900°F) |
