Flow Parameter with GN10
| Speed(rpm) | Tubing (IDxOD mm) | 300rpm is for Intermittent operation only | |
| 2.48x4 | 4.48x6 | ||
| 0.1 | 0.004 | 0.021 | |
| 10 | 0.4 | 2.1 | |
| 50 | 2 | 10.5 | |
| 100 | 4 | 21 | |
| 200 | 8 | 42 | |
| 300 | 12 | 65 | |

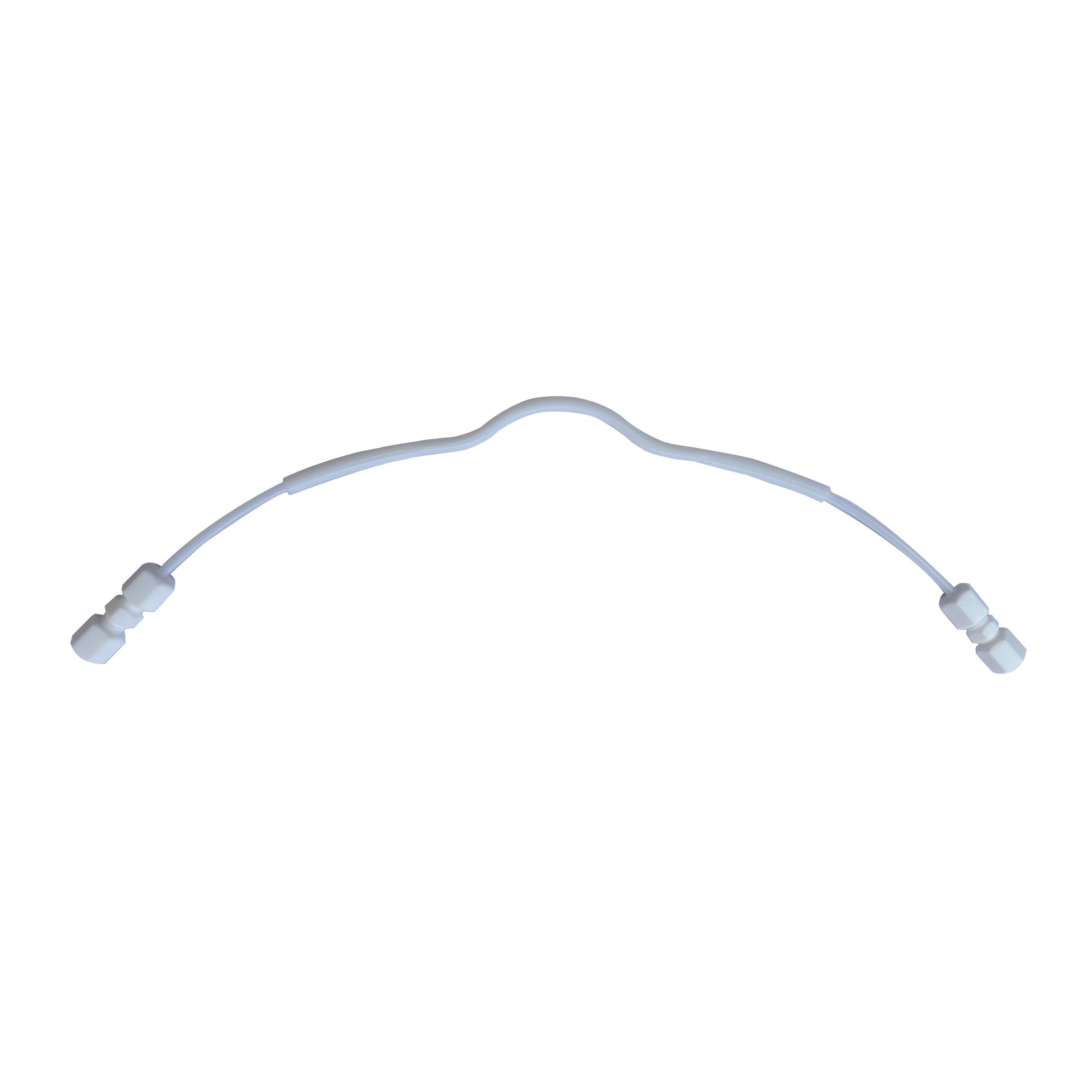

Specifications
Tubing material: PTFE.
2 connectors for extending the tubing.
Tubing length: 380mm.
