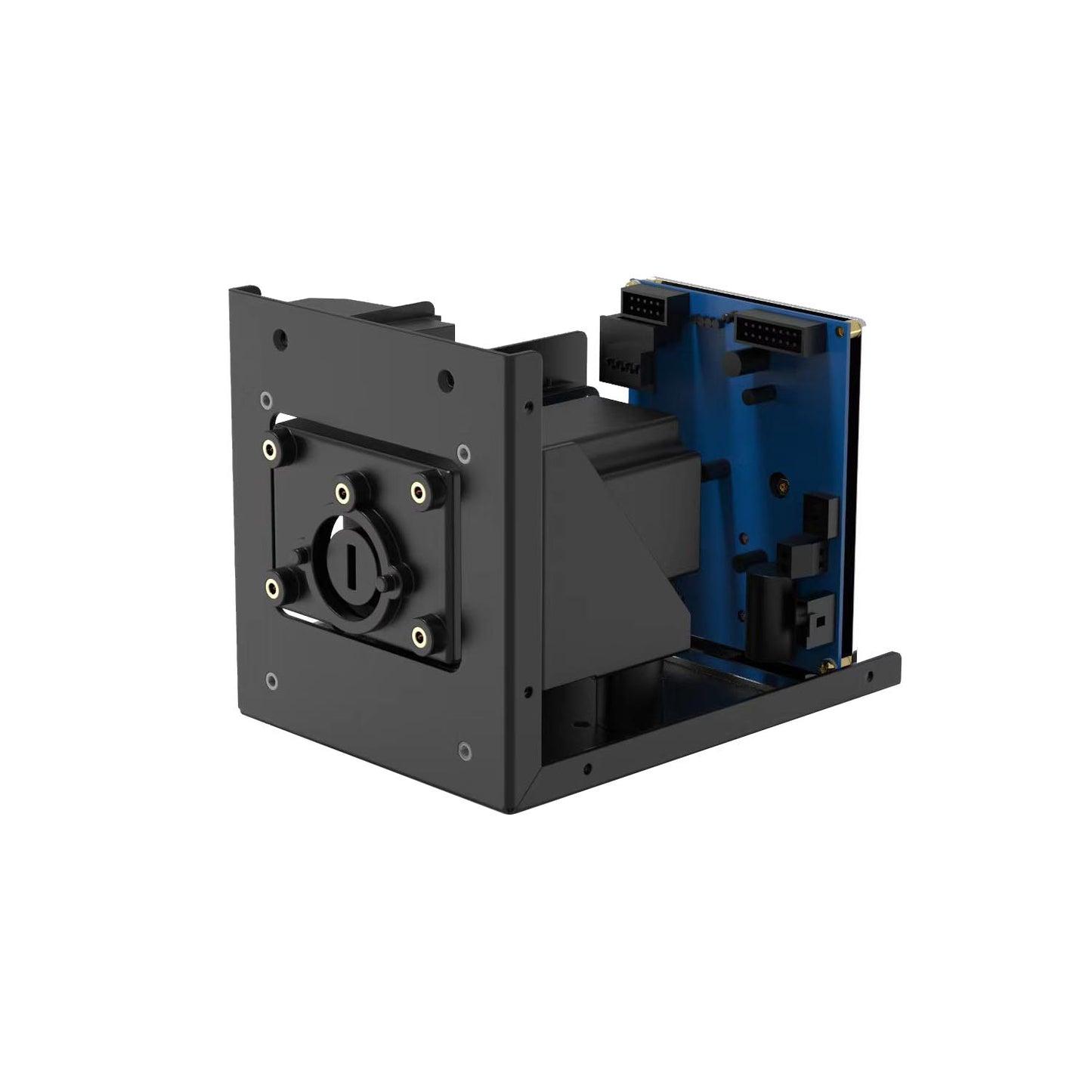

This series comprises four models: B100K1, B100K2, B100K3, and B100K5, compatible with various types of pump heads. The products feature a compact size, streamlined structure, and aesthetically pleasing design. They operate with low noise and are well-suited for high-speed continuous operation.
| Motor Type | 57 stepper motor |
| Voltage | DC24V–DC36V |
| Wattage | <50W |
| Speed Range | ≤150rpm |
| Adaptable Pump Head | YZ15, YZ25, YT25, YT15 (up to 2 channels) DT10, DT15, DG6, DG10, DS6, DS10 (up to 4 channels) BZ15, BZ25 |
| Rotation Direction | Clockwise / Counterclockwise rotation |
| Pump Head Bracket Material | ABS-D1200 plastic |
| Mounting Plate Material | Q235A carbon steel |
| Pump Head Life | ≥6000h |
| Noise | ≤60dB (test environment noise ≤40dB, test product and noise meter horizontal distance of 1 meter) |
| Weight | 2027g (without pump head) |
| Dimensions (L×W×H) | 175 × 120 × 136 mm |
| Static Torque | 1.2 N.m |
| Working Environment | Temperature 0–40°C, relative humidity <80% RH |
| Storage Environment | Ambient temperature of -40 ~ +50°C, relative humidity not more than 95%, clean and well-ventilated environment, air shall not contain corrosive or flammable gases, oil mist, or dust. |
Component Name and Function
- Pump Head Bracket: Connects the product and pump head.
- Mounting Plate: Connects the motor to the pump head bracket and allows the product to be installed on other devices.
- DB15 External Control Interface: External analog control and RS485 communication control.
- Power Terminal: Connect DC power supply to power the product.
