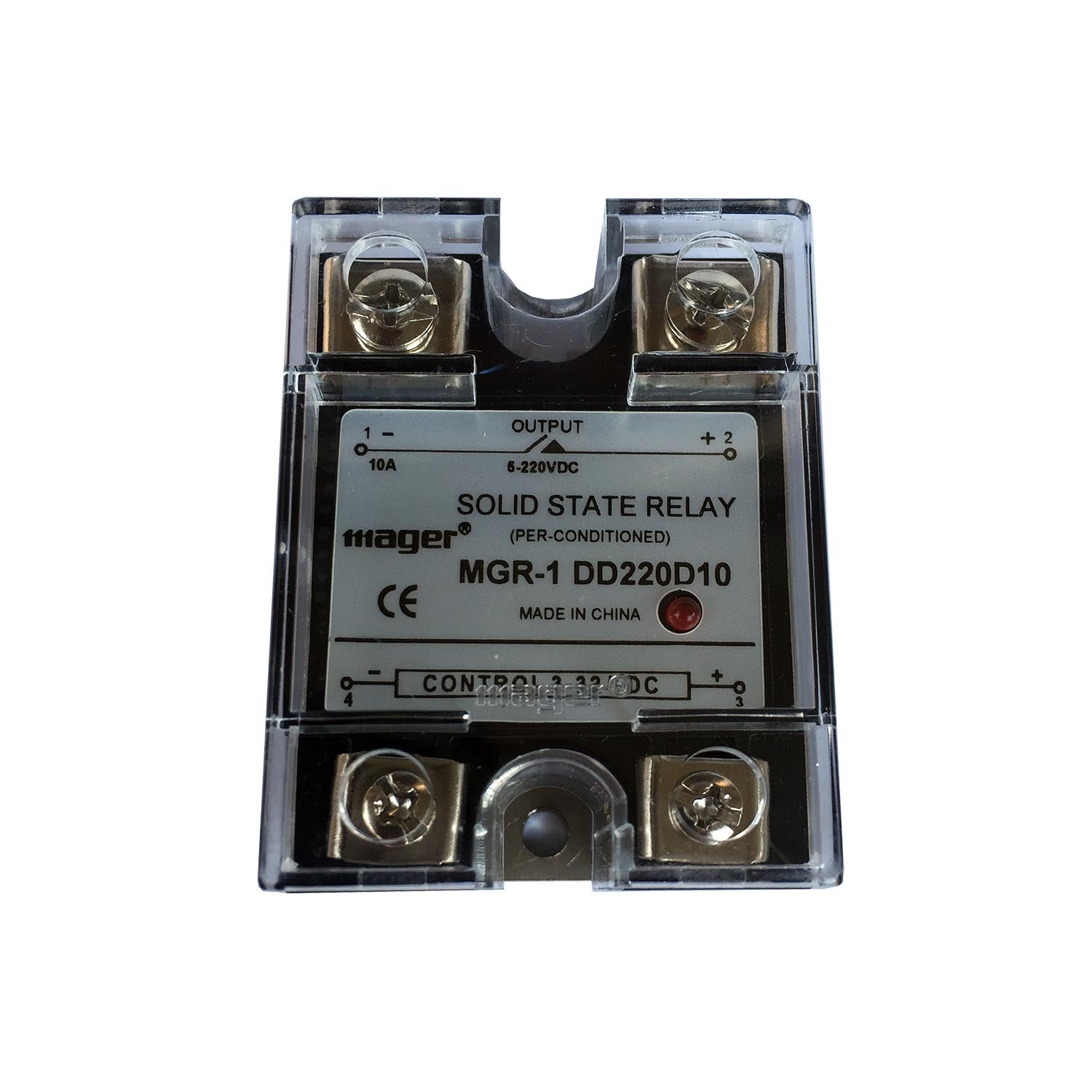

It's for switching DC power source from 5V to 220V. The control signal is 3-32V DC. Maximum current 10A. Please note it needs a heatsink to work with it if the current is higher than 7A.
| Manufacture | Mager | |
| Manufacture’s Part Number | SSR-10 DD (MGR-1DD200D10) | |
| Triggering Voltage | 3-32VDC | |
| Output Voltage | 5-220VDC | |
| Current Rating | 10A | |
| On Voltage | ≤2.3V | |
| Off Leakage Current | ≤2mA | |
| On-off Time | ≤10mS | |
| Insulation Resistance | 500MΩ/500VDC | |
| Ambient Temperature | -30~+75 °C | |
| Dimensions | 2.25x1.75x1.25 | |
| Weight | 90g | |
| Approval | CE | |
Note: To test an SSR, the easiest way is to use a bulb. Please check the following video. A multimeter won't help since there's a small current leakage even if the output of the SSR is open.
